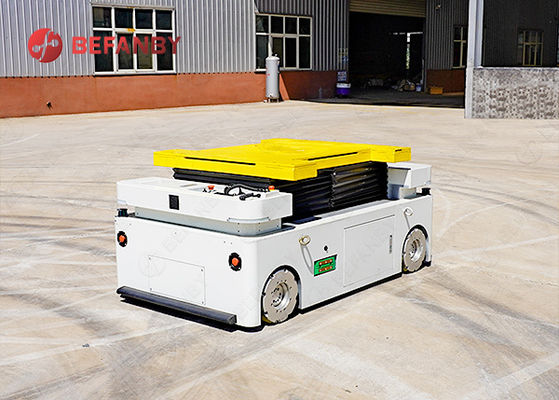

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot

  • 1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
  • 1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
  • 1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
  • 1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
  • 1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
Lugar de origem Henan, China
Marca BEFANBY
Certificação CE,SGS,ISO9001
Número do modelo AGV
Quantidade de ordem mínima 1 conjunto/conjuntos
Preço Negociável
Detalhes da embalagem O carrinho de transferência será embalado pela lona, ​​as peças serão empacotadas na caixa de madeir
Tempo de entrega 20-30 dias como sempre entrega
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 1500 conjuntos/conjuntos, por ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Cor Personalizado Garantia 24 meses
Capacidade de carga Personalizado Fonte de energia Bateria operada
Porta Qingdao/Tianjin/Shanghai Aplicativo Trabalho aéreo, fábrica, oficina, canteiro de obras
Materiais aço
Deixe um recado
Descrição de produto

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot

Product Description

The AGV (Automated Guided Vehicle) is a type of intelligent transport equipment designed for indoor and outdoor factories, integrating automated control and high-precision positioning. Its Mecanum wheel drive design enables full range of motion (forward, reverse, lateral movement, diagonal movement, and on-the-spot rotation), significantly improving operational flexibility and docking accuracy in confined spaces.

Structure and Drive
The vehicle is constructed from a welded, high-strength steel structure, resulting in a compact appearance and strong load-bearing capacity. The load-bearing capacity can be customized according to actual needs. The Mecanum wheels consist of multiple tilting rollers, enabling flexible operation in any direction. The drive system utilizes high-precision servo motors coupled with encoder control, ensuring smooth movement and minimal positioning error.

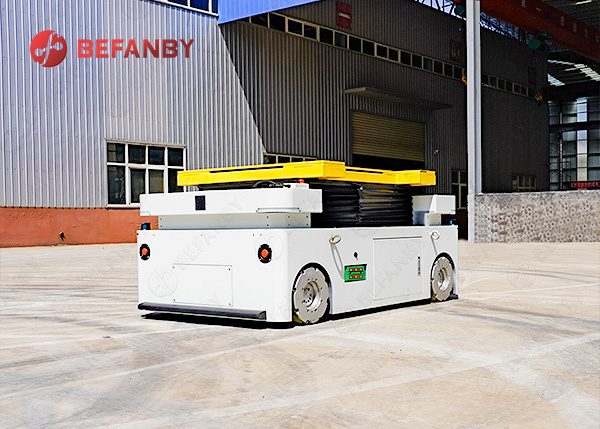

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 0




Navigation method

The vehicle's built-in intelligent AGV control system supports multiple navigation methods, including laser, QR code, and vision, allowing for flexible selection based on production line layout. The system supports automatic path planning, obstacle avoidance, task scheduling, and remote monitoring, enabling seamless integration with MES systems.

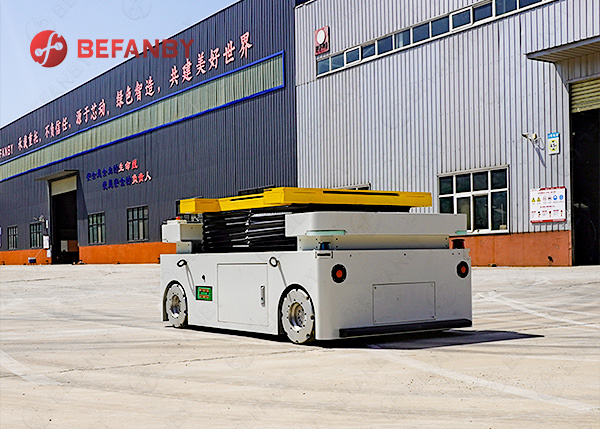

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 1


Product Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8


Company Profile

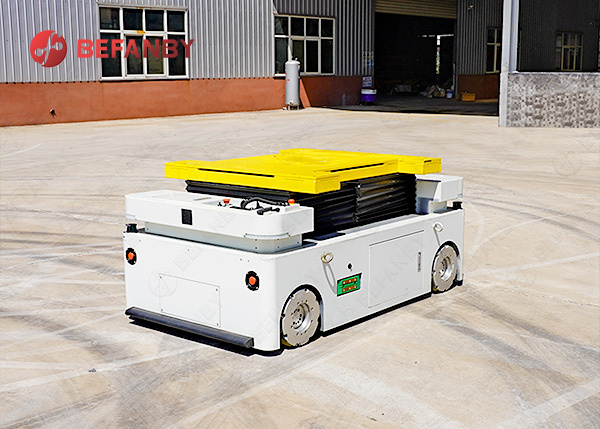

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 2

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 3

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 4

Product Feature

Heavy-Duty Capacity: Maximum load capacity of 30 tons, meeting the needs of efficient transport of large and heavy materials.

Intelligent Navigation: Supports multiple navigation methods, including laser, magnetic stripe/pin, and QR code, for precise and flexible operation.

Safety Protection: Cushioned protection is installed on all four sides of the vehicle, along with an emergency stop button and sensor protection system.

Flexible Operation: No tracks are required, allowing for free straight and turning maneuvers, adapting to complex routes.

Energy-Saving and Environmentally Friendly: Battery-powered, low-noise, zero-emission, suitable for a variety of indoor and outdoor applications.

Customizable: Vehicle dimensions, platform structure, and functional modules can be customized to meet customer needs.

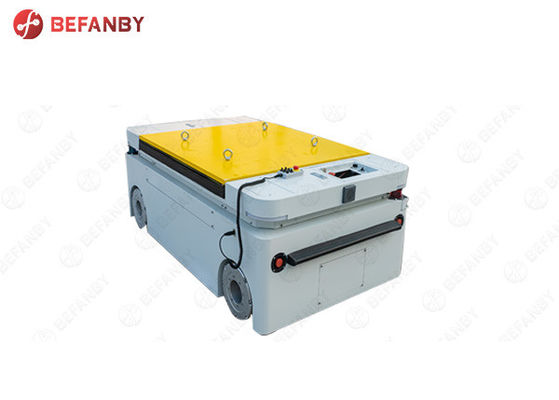

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot 5
