Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty

  • Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty
  • Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty
  • Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty
  • Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty
Lugar de origem Henan, China
Marca BEFANBY
Certificação CE,SGS,ISO9001
Número do modelo rgv
Quantidade de ordem mínima 1 conjunto/conjuntos
Preço Negociável
Detalhes da embalagem O carrinho de transferência será embalado pela lona, ​​as peças serão empacotadas na caixa de madeir
Tempo de entrega 20-30 dias como sempre entrega
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 1500 conjuntos/conjuntos, por ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
cor Personalizado Garantia 24 meses
Capacidade de carga Personalizado Fonte de energia Operado por bateria
Porta Qingdao/Tianjin/Shanghai Aplicativo fábrica, oficina, construção de edifícios, janela de limpeza
Materiais Aço
Destacar

30T Load Capacity RGV Transfer Cart

,

24 Months Warranty Rail Guided Vehicle

,

V-Frame Device Automatic Guided Vehicle
Deixe um recado
Descrição de produto

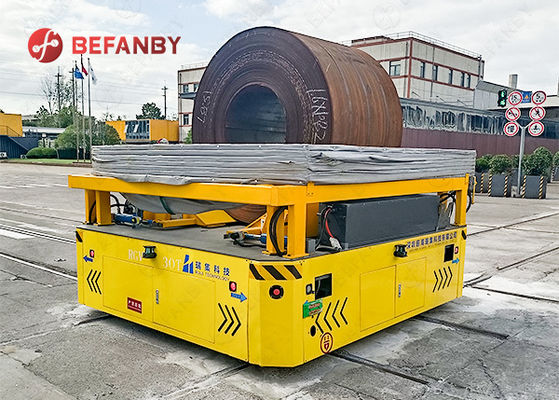

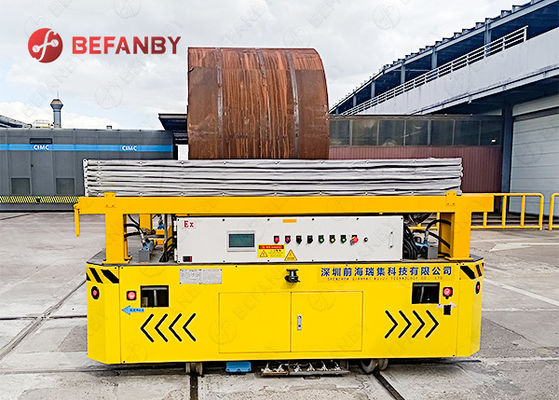

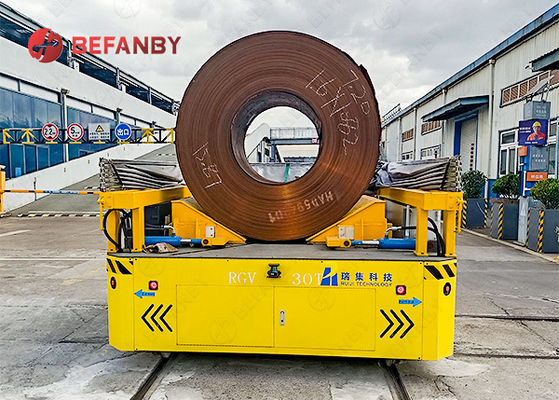

Customized 30T Remote Control With V-Frame Device RGV Transfer Cart
Platform Structure Design Specifically Developed for Roll Materials
  • V-Shaped Roll Support / Adjustable Curved Roll Rack: Customizable with V-shaped supports and curved structures to ensure stability and prevent tipping or rolling of the roll material during operation.
  • High-Strength Load-Bearing Platform: Utilizes a box-beam welded structure for uniform stress distribution, strong compressive strength, and superior bending resistance, suitable for 5T to 50T loads (or higher).
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 0
Intelligent Operating System for Greater Precision and Reliability
  • Automatic Operation / Fixed-Point Stopping: Uses laser and encoder control technologies for fully automatic driving and precise positioning.
  • Real-Time Monitoring System: Optional touchscreen control displays speed, location, and status information.
  • Multiple Power Supply Options: Low-voltage rail or sliding contact line power for stable, long-term operation.
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 1
Product Parameters
Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail 1-300ton (customizable) Running distance Steel plates, workpieces, equipment, coils, columns, ladles
Battery Powered Transfer Car KPX Battery Customizable Using frequency Various industrial applications
Motorized Transfer Trolley KPJ Cable Drum Customizable Running distance Material handling
Product Features
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 2
Applications
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 3
Company Profile
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 4 Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 5 Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 6
Related Products
Customized 30T Load Capacity RGV Transfer Cart with V-Frame Device and 24 Months Warranty 7
FAQ
How can I operate the transfer cart?
The English user manual and parts manual will be delivered with your items.
How to ensure your product quality?
We provide rail installation drawings, construction drawings, technical guidance, and can send installation engineers if needed.
Whether you can offer customized transfer car?
Yes, our engineering team can create customized designs based on your requirements.
Whether there is professional technician assist our installation?
Yes, we have professional installation teams available for international projects.
