Easy Operation Factory Use with V Frame Device Rail Transfer Cart

  • Easy Operation Factory Use with V Frame Device Rail Transfer Cart
  • Easy Operation Factory Use with V Frame Device Rail Transfer Cart
  • Easy Operation Factory Use with V Frame Device Rail Transfer Cart
  • Easy Operation Factory Use with V Frame Device Rail Transfer Cart
Lugar de origem Henan, China
Marca BEFANBY
Certificação CE,SGS,ISO9001
Número do modelo KPX
Quantidade de ordem mínima 1 conjunto/conjuntos
Preço Negociável
Detalhes da embalagem A plataforma móvel de elevação será embalada pela lona, as peças serão enviadas na caixa de madeira
Tempo de entrega 20-30 dias como sempre entrega
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 1500 conjuntos/conjuntos, por ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Cor Personalizado Garantia 24 meses
Capacidade de carga Personalizado Fonte de energia Bateria operada
Porta Qingdao/Tianjin/Shanghai Aplicativo Trabalho aéreo, fábrica, oficina, canteiro de obras
Materiais aço
Deixe um recado
Descrição de produto

Easy Operation Factory Use with V Frame Device Rail Transfer Cart

Product Description

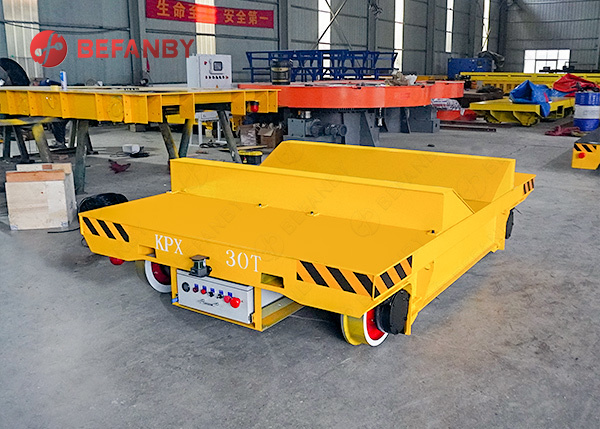

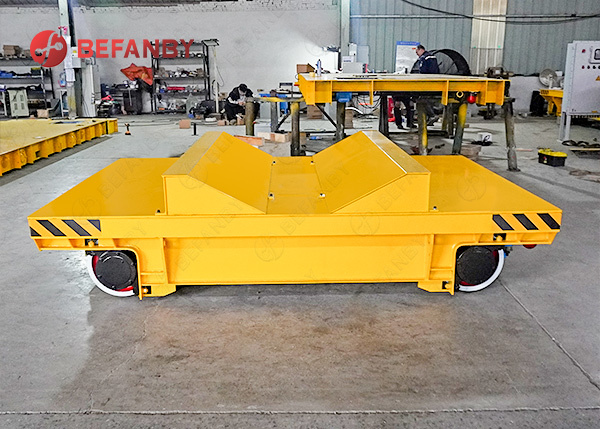

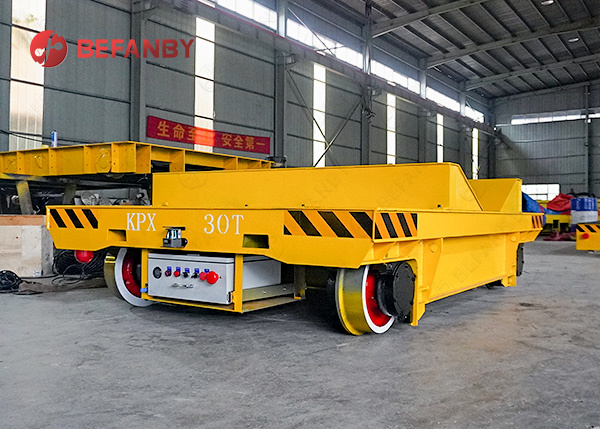

The transfer cart featured here is equipped with a coil support, a specialized transport device designed for coiled materials (such as steel coils, aluminum coils, copper coils, and paper coils). It operates on fixed rails for smooth and reliable operation, and its load capacity can be customized to suit specific needs, ranging from 1 to 100 tons. Its platform is equipped with a specially designed V-shaped or curved coil support, which securely supports the material during transport, preventing rolling and shifting during transportation and ensuring stability. Furthermore, the coil support can be adjusted and disassembled to increase the platform size.

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Company Profile

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 1

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 2

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 3

Product Feature

Dedicated Coil Handling: The tabletop is equipped with a V-shaped or adjustable coil support frame, allowing for flexible adjustment based on coil size, accommodating a wide range of coil sizes.

Stable Power Drive: Optional power supply options include battery power, low-voltage rail power, or busbar power, ensuring smooth operation and adaptability to diverse work environments.

High Load Capacity: Customizable load capacities ranging from 10 to 200 tons meet the coil transport needs of large-scale heavy industry, metallurgy, steel, and other industries.

Safe Operation: The vehicle body structure is stable, and the tabletop can be equipped with high-temperature resistant materials to ensure safe coil handling even in high-temperature, explosion-proof, and other challenging environments.

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 4

Shipping

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 5


Related Products

Easy Operation Factory Use with V Frame Device Rail Transfer Cart 6

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.


Product Tap: Material Handling Cart , Rail Transfer Cart
