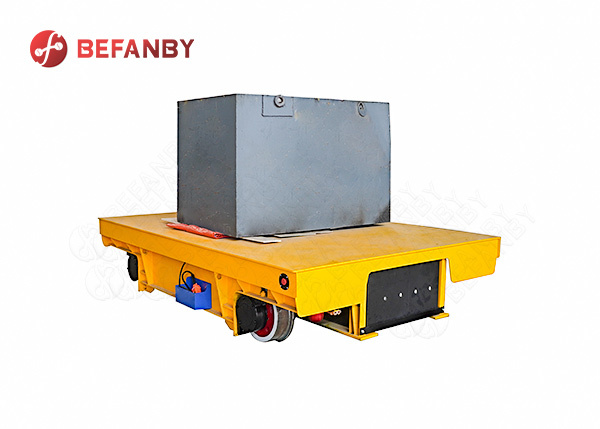

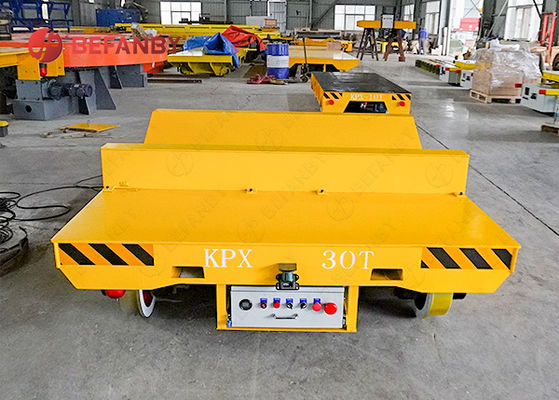

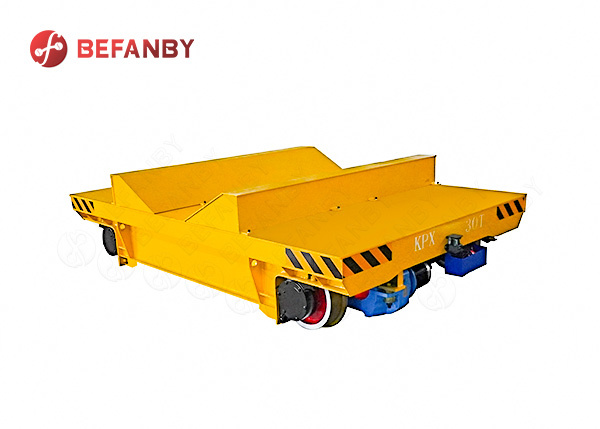

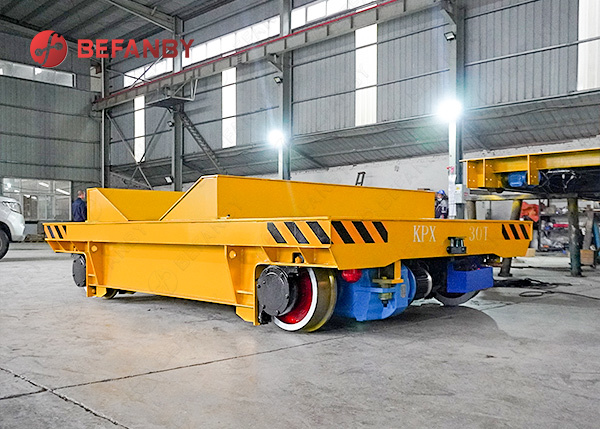

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart

  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
Lugar de origem Henan, China
Marca BEFANBY
Certificação CE,SGS,ISO9001
Número do modelo KPT
Quantidade de ordem mínima 1 conjunto/conjuntos
Preço Negociável
Detalhes da embalagem A plataforma de elevação será embalada pela lona, as peças serão enviadas na caixa de madeira de alt
Tempo de entrega 20-30 dias como sempre entrega
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 1500 conjuntos/conjuntos, por ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Cor Personalizado Nome do produto Plataforma de trabalho aéreo com tesoura de bateria flexível
Capacidade de carga Personalizado Fonte de energia Bateria operada
Porta Qingdao/Tianjin/Shanghai Aplicativo Indústria pesada, ao ar livre, construção
Materiais aço
Deixe um recado
Descrição de produto

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart

Product Description

Strong Load Capacity
Heavy loads are our core competency. Whether it's steel, large machinery, or automotive parts, we offer customized solutions ranging from a few tons to hundreds of tons to meet your needs and ensure safe transportation.

Flexible Power Options
DC Motors: We provide the most suitable power solution for you. DC motors are renowned for their robust start-stop stability and speed regulation, enabling precise starting control and are particularly suitable for applications requiring precise positioning. We offer both DC and AC motors to suit different application scenarios and handling capacities.

Reliable Power System
We utilize a battery-powered system. Safe and stable: Compared to busbars and low-voltage rail power supplies, this system has no exposed contacts, eliminating the risk of short circuits and power outages caused by dust and metal shavings. It is particularly suitable for harsh, dusty, and humid environments.


Easy Maintenance: The track's robust construction and built-in power supply significantly reduce routine maintenance.

Long-Distance Operation: Ideal for assembly line operations requiring long, continuous transport.





Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Company Profile

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 1

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 2

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 3

Product Details

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 4

Product Feature

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 5

Shipping

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 6

Related Products


Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
